Middleware

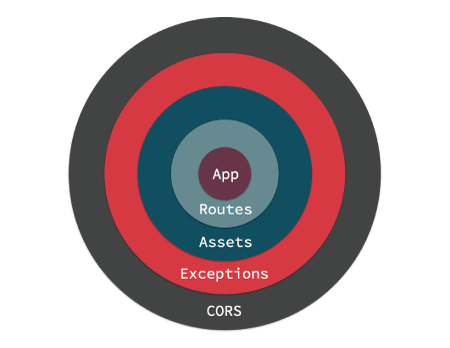

Middleware objects give you the ability to 'wrap' your application in re-usable, composable layers of Request handling, or response building logic. Visually, your application ends up at the center, and middleware is wrapped aroud the app like an onion. Here we can see an application wrapped with Routes, Assets, Exception Handling and CORS header middleware.

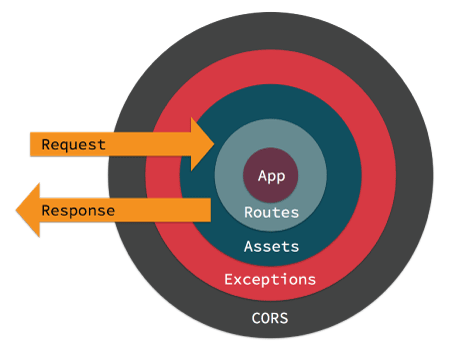

When a request is handled by your application it enters from the outermost middleware. Each middleware can either delegate the request/response to the next layer, or return a response. Returning a response prevents lower layers from ever seeing the request. An example of that is the AssetMiddleware handling a request for a plugin image during development.

If no middleware take action to handle the request, a controller will be located and have its action invoked, or an exception will be raised generating an error page.

Middleware are part of the new HTTP stack in CakePHP that leverages the PSR-7 request and response interfaces. Because CakePHP is leveraging the PSR-7 standard you can use any PSR-7 compatible middleware available on The Packagist.

Middleware in CakePHP

CakePHP provides several middleware to handle common tasks in web applications:

• Cake\Error\Middleware\ErrorHandlerMiddleware traps exceptions from the wrapped middleware and renders an error page using the Error & Exception Handling Exception handler.
• Cake\Routing\AssetMiddleware checks whether the request is referring to a theme or plugin asset file, such as a CSS, JavaScript or image file stored in either a plugin's webroot folder or the corresponding one for a Theme.
• Cake\Routing\Middleware\RoutingMiddleware uses the Router to parse the incoming URL and assign routing parameters to the request.
• Cake\I18n\Middleware\LocaleSelectorMiddleware enables automatic language switching from the Accept-Language header sent by the browser.
• Cake\Http\Middleware\SecurityHeadersMiddleware makes it easy to add security related headers like X-Frame-Options to responses.
• Cake\Http\Middleware\EncryptedCookieMiddleware gives you the ability to manipulate encrypted cookies in case you need to manipulate cookie with obfuscated data.
• Cake\Http\Middleware\CsrfProtectionMiddleware adds CSRF protection to your application.
• Cake\Http\Middleware\BodyParserMiddleware allows you to decode JSON, XML and other encoded request bodies based on Content-Type header.
• Cake\Http\Middleware\CspMiddleware makes it simpler to add Content-Security-Policy headers to your application.

Using Middleware

Middleware can be applied to your application globally, or to individual routing scopes.

To apply middleware to all requests, use the middleware method of your App\Application class. If you don't have an App\Application class, see the section on Adding Http Stack for more information. Your application's middleware hook method will be called at the beginning of the request process, you can use the MiddlewareQueue object to attach middleware:

namespace App;

use Cake\Http\BaseApplication;
use Cake\Error\Middleware\ErrorHandlerMiddleware;

class Application extends BaseApplication
{
    public function middleware($middlewareQueue)
    {
        // Bind the error handler into the middleware queue.
        $middlewareQueue->add(new ErrorHandlerMiddleware());
        return $middlewareQueue;
    }
}

In addition to adding to the end of the MiddlewareQueue you can do a variety of operations:

$layer = new \App\Middleware\CustomMiddleware;

// Added middleware will be last in line.
$middlewareQueue->add($layer);

// Prepended middleware will be first in line.
$middlewareQueue->prepend($layer);

// Insert in a specific slot. If the slot is out of
// bounds, it will be added to the end.
$middlewareQueue->insertAt(2, $layer);

// Insert before another middleware.
// If the named class cannot be found,
// an exception will be raised.
$middlewareQueue->insertBefore(
    'Cake\Error\Middleware\ErrorHandlerMiddleware',
    $layer
);

// Insert after another middleware.
// If the named class cannot be found, the
// middleware will added to the end.
$middlewareQueue->insertAfter(
    'Cake\Error\Middleware\ErrorHandlerMiddleware',
    $layer
);

In addition to applying middleware to your entire application, you can apply middleware to specific sets of routes using Scoped Middleware.

Adding Middleware from Plugins

After the middleware queue has been prepared by the application, the Server.buildMiddleware event is triggered. This event can be useful to add middleware from plugins. Plugins can register listeners in their bootstrap scripts, that add middleware:

// In ContactManager plugin bootstrap.php
use Cake\Event\EventManager;

EventManager::instance()->on(
    'Server.buildMiddleware',
    function ($event, $middlewareQueue) {
        $middlewareQueue->add(new ContactPluginMiddleware());
    });

PSR-7 Requests and Responses

Middleware and the new HTTP stack are built on top of the PSR-7 Request & Response Interfaces. While all middleware will be exposed to these interfaces, your controllers, components, and views will not.

Interacting with Requests

The RequestInterface provides methods for interacting with the headers, method, URI, and body of a request. To interact with the headers, you can:

// Read a header as text
$value = $request->getHeaderLine('Content-Type');

// Read header as an array
$value = $request->getHeader('Content-Type');

// Read all the headers as an associative array.
$headers = $request->getHeaders();

Requests also give access to the cookies and uploaded files they contain:

// Get an array of cookie values.
$cookies = $request->getCookieParams();

// Get a list of UploadedFile objects
$files = $request->getUploadedFiles();

// Read the file data.
$files[0]->getStream();
$files[0]->getSize();
$files[0]->getClientFileName();

// Move the file.
$files[0]->moveTo($targetPath);

Requests contain a URI object, which contains methods for interacting with the requested URI:

// Get the URI
$uri = $request->getUri();

// Read data out of the URI.
$path = $uri->getPath();
$query = $uri->getQuery();
$host = $uri->getHost();

Lastly, you can interact with a request's 'attributes'. CakePHP uses these attributes to carry framework specific request parameters. There are a few important attributes in any request handled by CakePHP:

• base contains the base directory for your application if there is one.
• webroot contains the webroot directory for your application.
• params contains the results of route matching once routing rules have been processed.
• session contains an instance of CakePHP's Session object. See Accessing Session Object for more information on how to use the session object.

Interacting with Responses

The methods available to create a server response are the same as those available when interacting with Httpclient Response Objects. While the interface is the same the usage scenarios are different.

When modifying the response, it is important to remember that responses are immutable. You must always remember to store the results of any setter method. For example:

// This does *not* modify $response. The new object was not
// assigned to a variable.
$response->withHeader('Content-Type', 'application/json');

// This works!
$newResponse = $response->withHeader('Content-Type', 'application/json');

Most often you'll be setting headers and response bodies on requests:

// Assign headers and a status code
$response = $response->withHeader('Content-Type', 'application/json')
    ->withHeader('Pragma', 'no-cache')
    ->withStatus(422);

// Write to the body
$body = $response->getBody();
$body->write(json_encode(['errno' => $errorCode]));

Creating Middleware

Middleware can either be implemented as anonymous functions (Closures), or as invokable classes. While Closures are suitable for smaller tasks they make testing harder, and can create a complicated Application class. Middleware classes in CakePHP have a few conventions:

• Middleware class files should be put in src/Middleware. For example: src/Middleware/CorsMiddleware.php
• Middleware classes should be suffixed with Middleware. For example: LinkMiddleware.
• Middleware are expected to implement the middleware protocol.

While not a formal interface (yet), Middleware do have a soft-interface or 'protocol'. The protocol is as follows:

1. Middleware must implement __invoke($request, $response, $next).
2. Middleware must return an object implementing the PSR-7 ResponseInterface.

Middleware can return a response either by calling $next or by creating their own response. We can see both options in our simple middleware:

// In src/Middleware/TrackingCookieMiddleware.php
namespace App\Middleware;

use Cake\Http\Cookie\Cookie;
use Cake\I18n\Time;

class TrackingCookieMiddleware
{
    public function __invoke($request, $response, $next)
    {
        // Calling $next() delegates control to the *next* middleware
        // In your application's queue.
        $response = $next($request, $response);

        // When modifying the response, you should do it
        // *after* calling next.
        if (!$request->getCookie('landing_page')) {
            $expiry = new Time('+ 1 year');
            $response = $response->withCookie(new Cookie(
                'landing_page',
                $request->getRequestTarget(),
                $expiry
            ));
        }
        return $response;
    }
}

Now that we've made a very simple middleware, let's attach it to our application:

// In src/Application.php
namespace App;

use App\Middleware\TrackingCookieMiddleware;

class Application
{
    public function middleware($middlewareQueue)
    {
        // Add your simple middleware onto the queue
        $middlewareQueue->add(new TrackingCookieMiddleware());

        // Add some more middleware onto the queue

        return $middlewareQueue;
    }
}

Routing Middleware

Routing middleware is responsible for applying your application's routes and resolving the plugin, controller, and action a request is going to. It can cache the route collection used in your application to increase startup time. To enable cached routes, provide the desired cache configuration as a parameter:

// In Application.php
public function middleware($middlewareQueue)
{
    // ...
    $middlewareQueue->add(new RoutingMiddleware($this, 'routing'));
}

The above would use the routing cache engine to store the generated route collection.

Added in version 3.6.0

Route caching was added in 3.6.0

Content Security Policy Header Middleware

The CspMiddleware makes it simpler to add Content-Security-Policy headers in your application. Before using it you should install paragonie/csp-builder:

composer require paragonie/csp-builder

You can then configure the middleware using an array, or passing in a built CSPBuilder object:

use Cake\Http\Middleware\CspMiddleware;

$csp = new CspMiddleware([
    'script-src' => [
        'allow' => [
            'https://www.google-analytics.com',
        ],
        'self' => true,
        'unsafe-inline' => false,
        'unsafe-eval' => false,
    ],
]);

$middlewareQueue->add($csp);

Added in version 3.9.0

CspMiddleware was added.

Security Header Middleware

The SecurityHeaderMiddleware layer makes it easy to apply security related headers to your application. Once setup the middleware can apply the following headers to responses:

• X-Content-Type-Options
• X-Download-Options
• X-Frame-Options
• X-Permitted-Cross-Domain-Policies
• Referrer-Policy

This middleware is configured using a fluent interface before it is applied to your application's middleware stack:

use Cake\Http\Middleware\SecurityHeadersMiddleware;

$securityHeaders = new SecurityHeadersMiddleware();
$securityHeaders
    ->setCrossDomainPolicy()
    ->setReferrerPolicy()
    ->setXFrameOptions()
    ->setXssProtection()
    ->noOpen()
    ->noSniff();

$middlewareQueue->add($securityHeaders);

Added in version 3.5.0

The SecurityHeadersMiddleware was added in 3.5.0

Encrypted Cookie Middleware

If your application has cookies that contain data you want to obfuscate and protect against user tampering, you can use CakePHP's encrypted cookie middleware to transparently encrypt and decrypt cookie data via middleware. Cookie data is encrypted with via OpenSSL using AES:

use Cake\Http\Middleware\EncryptedCookieMiddleware;

$cookies = new EncryptedCookieMiddleware(
    // Names of cookies to protect
    ['secrets', 'protected'],
    Configure::read('Security.cookieKey')
);

$middlewareQueue->add($cookies);

NOTE

It is recommended that the encryption key you use for cookie data, is used exclusively for cookie data.

The encryption algorithms and padding style used by the cookie middleware are backwards compatible with CookieComponent from earlier versions of CakePHP.

Added in version 3.5.0

The EncryptedCookieMiddleware was added in 3.5.0

Cross Site Request Forgery (CSRF) Middleware

CSRF protection can be applied to your entire application, or to specific routing scopes.

NOTE

You cannot use both of the following approaches together, you must choose only one. If you use both approaches together, a CSRF token mismatch error will occur on every PUT and POST request

WARNING

You cannot use CsrfComponent together with CsrfProtectionMiddleware, the warning about conflicting components is not shown until 3.7.0.

By applying the CsrfProtectionMiddleware to your Application middleware stack you protect all the actions in application:

// in src/Application.php
use Cake\Http\Middleware\CsrfProtectionMiddleware;

public function middleware($middlewareQueue) {
    $options = [
        // ...
    ];
    $csrf = new CsrfProtectionMiddleware($options);

    $middlewareQueue->add($csrf);
    return $middlewareQueue;
}

By applying the CsrfProtectionMiddleware to routing scopes, you can include or exclude specific route groups:

// in src/Application.php
use Cake\Http\Middleware\CsrfProtectionMiddleware;

public function routes($routes) {
    $options = [
        // ...
    ];
    $routes->registerMiddleware('csrf', new CsrfProtectionMiddleware($options));
    parent::routes($routes);
}

// in config/routes.php
Router::scope('/', function (RouteBuilder $routes) {
    $routes->applyMiddleware('csrf');
});

Options can be passed into the middleware's constructor. The available configuration options are:

• cookieName The name of the cookie to send. Defaults to csrfToken.
• expiry How long the CSRF token should last. Defaults to browser session.
• secure Whether or not the cookie will be set with the Secure flag. That is, the cookie will only be set on a HTTPS connection and any attempt over normal HTTP will fail. Defaults to false.
• httpOnly Whether or not the cookie will be set with the HttpOnly flag. Defaults to false.
• field The form field to check. Defaults to _csrfToken. Changing this will also require configuring FormHelper.

When enabled, you can access the current CSRF token on the request object:

$token = $this->request->getParam('_csrfToken');

As of 3.8.0 you can also use the whitelisting callback feature for more fine grained control over URLs for which CSRF token check should be done:

// in src/Application.php
use Cake\Http\Middleware\CsrfProtectionMiddleware;

public function middleware($middlewareQueue) {
    $csrf = new CsrfProtectionMiddleware();

    // Token check will be skipped when callback returns `true`.
    $csrf->whitelistCallback(function ($request) {
        // Skip token check for API URLs.
        if ($request->getParam('prefix') === 'api') {
            return true;
        }
    });

    // Ensure routing middleware is added to the queue before CSRF protection middleware.
    $middlewareQueue->add($csrf);

    return $middlewareQueue;
}

Added in version 3.5.0

The CsrfProtectionMiddleware was added in 3.5.0

NOTE

You should apply the CSRF protection middleware only for URLs which handle stateful requests using cookies/session. Stateless requests, for e.g. when developing an API, are not affected by CSRF so the middleware does not need to be applied for those URLs.

Integration with FormHelper

The CsrfProtectionMiddleware integrates seamlessly with FormHelper. Each time you create a form with FormHelper, it will insert a hidden field containing the CSRF token.

NOTE

When using CSRF protection you should always start your forms with the FormHelper. If you do not, you will need to manually create hidden inputs in each of your forms.

CSRF Protection and AJAX Requests

In addition to request data parameters, CSRF tokens can be submitted through a special X-CSRF-Token header. Using a header often makes it easier to integrate a CSRF token with JavaScript heavy applications, or XML/JSON based API endpoints.

The CSRF Token can be obtained via the Cookie csrfToken.

Body Parser Middleware

If your application accepts JSON, XML or other encoded request bodies, the BodyParserMiddleware will let you decode those requests into an array that is available via $request->getParsedBody() and $request->getData(). By default only json bodies will be parsed, but XML parsing can be enabled with an option. You can also define your own parsers:

use Cake\Http\Middleware\BodyParserMiddleware;

// only JSON will be parsed.
$bodies = new BodyParserMiddleware();

// Enable XML parsing
$bodies = new BodyParserMiddleware(['xml' => true]);

// Disable JSON parsing
$bodies = new BodyParserMiddleware(['json' => false]);

// Add your own parser matching content-type header values
// to the callable that can parse them.
$bodies = new BodyParserMiddleware();
$bodies->addParser(['text/csv'], function ($body) {
    // Use a CSV parsing library.
    return Csv::parse($body);
});

Added in version 3.6.0

The BodyParserMiddleware was added in 3.6.0
